YT-01 specifications

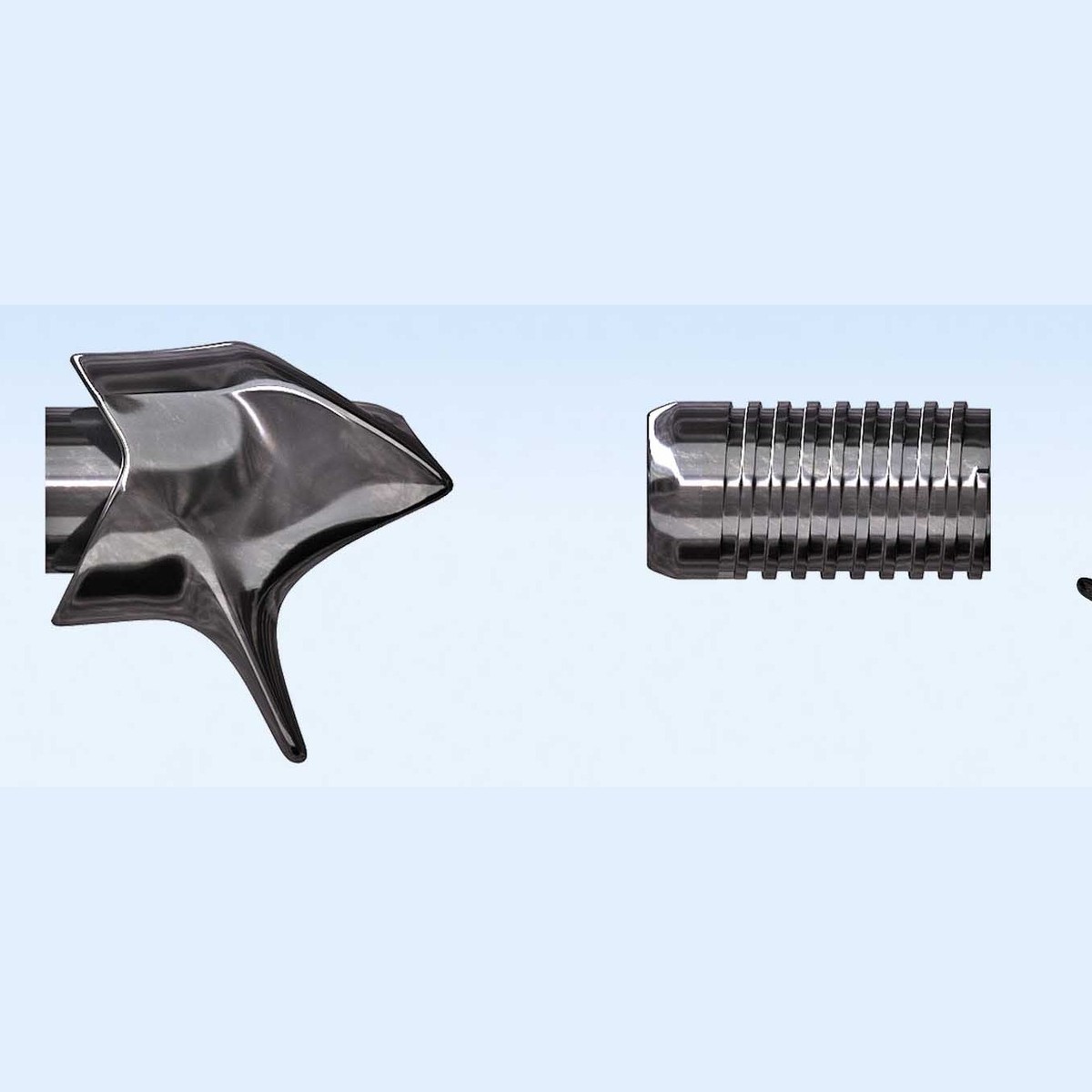

YT-01 is a split casting seat: the trigger hood and the threaded nut section are separate parts that are bonded onto the blank with the grips in between, which lets the rod builder expose blank or use a short carbon tube between them. The catalogue drawing gives a 28 mm reference gap between hood and nut.
The seat body is moulded from nylon reinforced with carbon fiber, with a hollow interior to save weight. It is listed as carbon-fiber-reinforced nylon, not as solid carbon fiber.
Features
- New split-type trigger reel seat design
- Material: high-strength nylon + carbon fiber
- Hollow internal structure for lower weight
- Recessed fit with cork or EVA grips for simple assembly
- Ergonomic shape for feel and control
- Bore 15.0 mm
Specifications
| Type | Casting (trigger) reel seat, split design |
| Construction | Carbon-fiber-reinforced nylon |
| Bore | 15.0 mm |
| Hood / trigger body | 27.0 mm high, 40.8 mm long; weight 6.55 g |
| Locking nut | 35.0 mm long, 15.0 / 18.2 mm; weight 2.52 g |
| Recommended grip gap | 28 mm (reference) |
| Supply | Component bulk supply or integrated in complete-rod OEM programs |
| Documentation | Catalogue drawing; approved sample before bulk production |
| MOQ | Per model, confirmed at quotation |
Dimensions are taken from our 2026 guide and reel seat catalogue (download PDF). Samples and the guide-system drawing are confirmed before bulk production.
