KR Carbon Guide overview

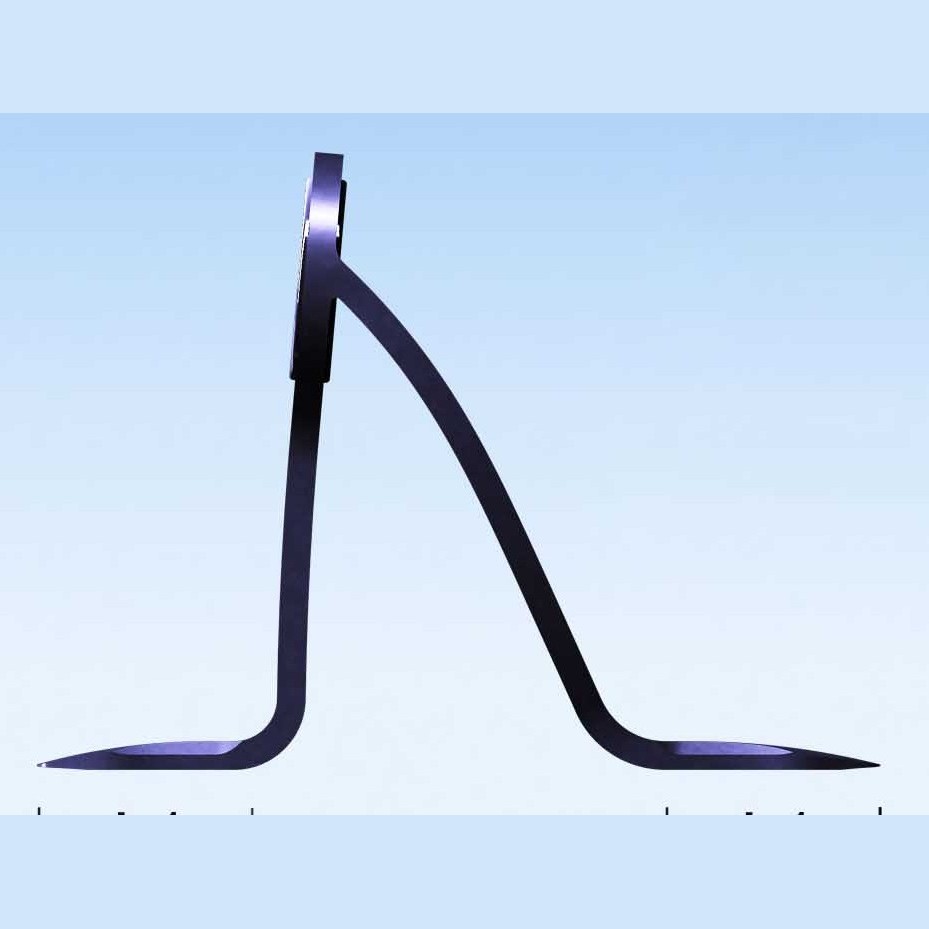

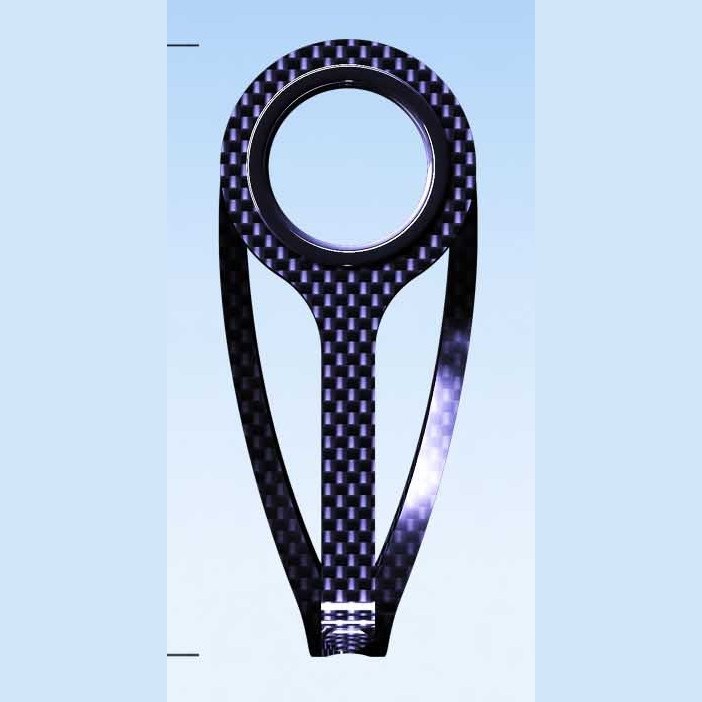

KR frames are tall (34.5 mm and 36.3 mm) with a small ring, so the line coming off a spinning reel is controlled quickly and then runs through small, light guides along the blank. Both sizes share the same 47.1 mm footprint and 11.0 mm foot length.
Ring colours: bright black, bright gold, bright silver and pink. Ring materials: zirconia (ZrO2) and silicon nitride (Si3N4).
Features
- High-sensitivity carbon fiber frame guide
- Frame made from high-modulus carbon fiber for a large weight reduction
- High-strength zirconia (ZrO2) ring, hardness grade 8.5, wear-resistant surface
- F-ring structure with a larger bonding surface for a more stable ring
- Special matte surface treatment on the frame, scratch and knock resistant
- Double-foot guide available in 2 sizes
KR Carbon Guide sizes
| Model | H (mm) | L1 (mm) | L (mm) |
|---|---|---|---|
| KR 12 | 34.5 | 11.0 | 47.1 |
| KR 16 | 36.3 | 11.0 | 47.1 |
Specifications
| Series | KR carbon fiber frame, tall double foot |
| Ring | ZrO2 (standard) or Si3N4; colours black / gold / silver / pink |
| Sizes | 2 sizes, see table below |
| Supply | Loose guides, matched guide sets or specified in a complete-rod OEM program |
| Documentation | Catalogue size tables; guide-system drawing and approved sample before bulk production |
| MOQ | Per size, confirmed at quotation |
Dimensions are taken from our 2026 guide and reel seat catalogue (download PDF). Samples and the guide-system drawing are confirmed before bulk production.
