T Titanium Guide overview
The T series is the titanium counterpart of the YT carbon running guide. The frame is formed from titanium powder under high pressure and plated for scratch resistance; the silicon nitride ring has a thin-ring profile with a wider contact surface.
Sizes T 4.0 to T 6.0 are running guides; the L, M and H frames (T5.5 L to T30 H) step up in height toward the reel. Titanium alloy grade and corrosion data are provided with material certificates or test reports on request.
Features
- High-sensitivity titanium alloy frame guide
- Frame formed from titanium powder by high-pressure moulding
- High-strength silicon nitride (Si3N4) ring, hardness grade 9, wear-resistant surface
- Thin-ring structure with a wider contact surface for a more stable ring
- Special plated surface treatment, scratch and knock resistant
- Single-foot guide available in 17 sizes

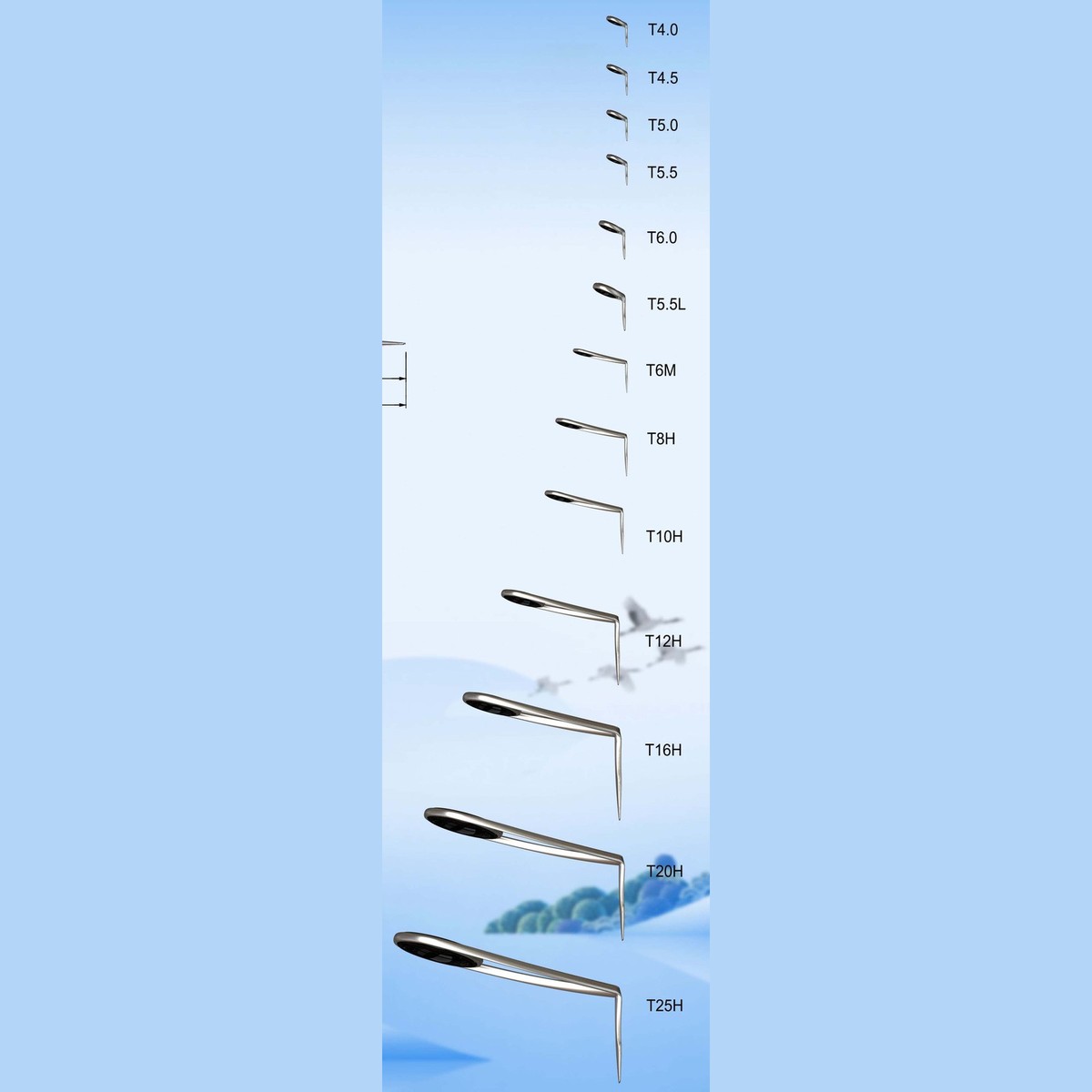

T Titanium Guide sizes

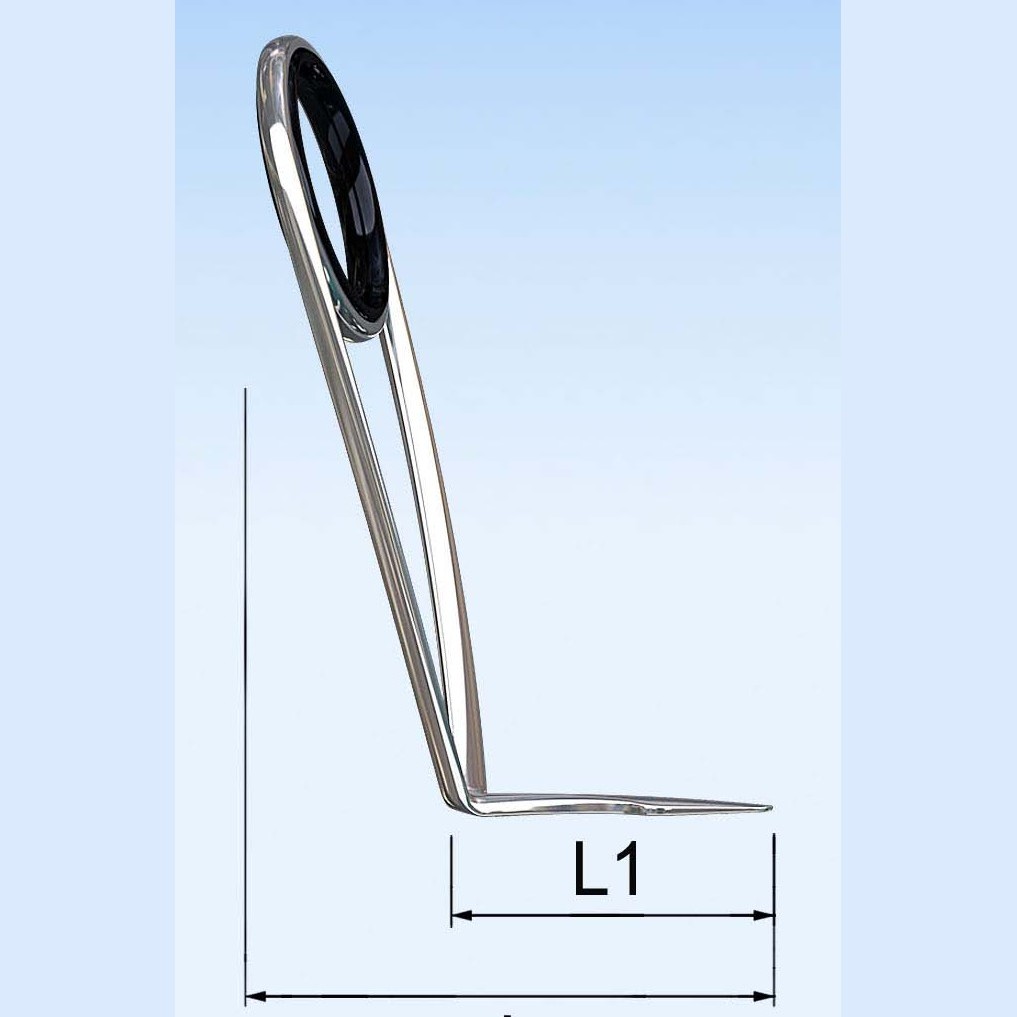

| Model | H (mm) | L1 (mm) | L (mm) |
|---|---|---|---|
| T 4.0 | 5.6 | 4.8 | 8.1 |
| T 4.5 | 6.0 | 5.6 | 9.2 |
| T 5.0 | 6.6 | 6.0 | 9.8 |
| T 5.5 | 7.4 | 7.0 | 11.7 |
| T 6.0 | 8.4 | 7.5 | 12.3 |
| T5.5 L | 11.0 | 8.5 | 12.8 |
| T6 L | 12.2 | 9.0 | 13.6 |
| T6 M | 18.6 | 10.0 | 16.6 |
| T8 M | 20.6 | 11.6 | 17.5 |
| T8 H | 26.8 | 12.5 | 19.2 |
| T10 H | 30.2 | 15.2 | 23.0 |
| T12 H | 31.7 | 16.0 | 24.3 |
| T16 L | 33.2 | 16.5 | 25.1 |
| T16 H | 43.3 | 17.0 | 27.0 |
| T20 H | 51.5 | 18.8 | 30.8 |
| T25 H | 56.0 | 20.0 | 34.0 |
| T30 H | 60.5 | 20.0 | 34.8 |
Specifications
| Series | T titanium frame, single foot |
| Ring | Si3N4 thin ring, hardness grade 9 |
| Sizes | 17 sizes, see table below |
| Supply | Loose guides, matched guide sets or specified in a complete-rod OEM program |
| Documentation | Catalogue size tables; guide-system drawing and approved sample before bulk production |
| MOQ | Per size, confirmed at quotation |
Dimensions are taken from our 2026 guide and reel seat catalogue (download PDF). Samples and the guide-system drawing are confirmed before bulk production.
