KW Carbon Guide overview
KW guides carry the line from the reel into the running guides. The double-foot carbon frame keeps the ring stable under casting load while staying far lighter than a metal frame of the same height. KW 5.5 to KW 12 are used on casting rods and light spinning rods; KW 16 to KW 40 are the large stripper guides for spinning, surf and boat rods.
In the catalogue casting set example the stripper section is KW 8, KW 7 and KW 6 followed by YT running guides. Ring colours: bright black, bright gold, bright silver and pink. Ring materials: zirconia (ZrO2) and silicon nitride (Si3N4).
Features
- High-sensitivity carbon fiber frame guide

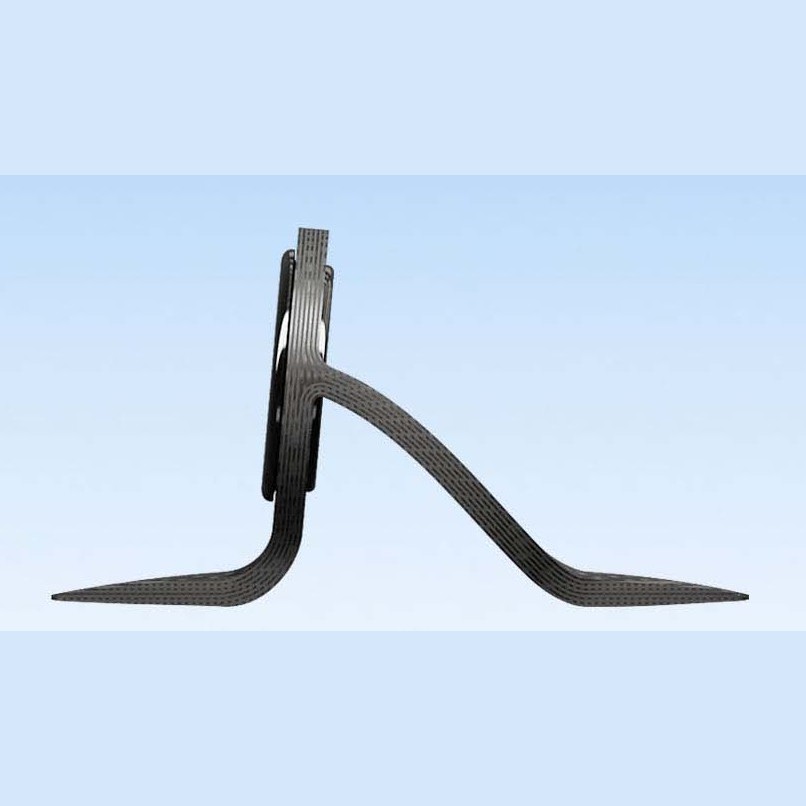

- Frame made from high-modulus carbon fiber for a large weight reduction
- High-strength zirconia (ZrO2) ring, hardness grade 8.5, wear-resistant surface
- F-ring structure with a larger bonding surface for a more stable ring
- Special matte surface treatment on the frame, scratch and knock resistant
- Double-foot guide available in 12 sizes

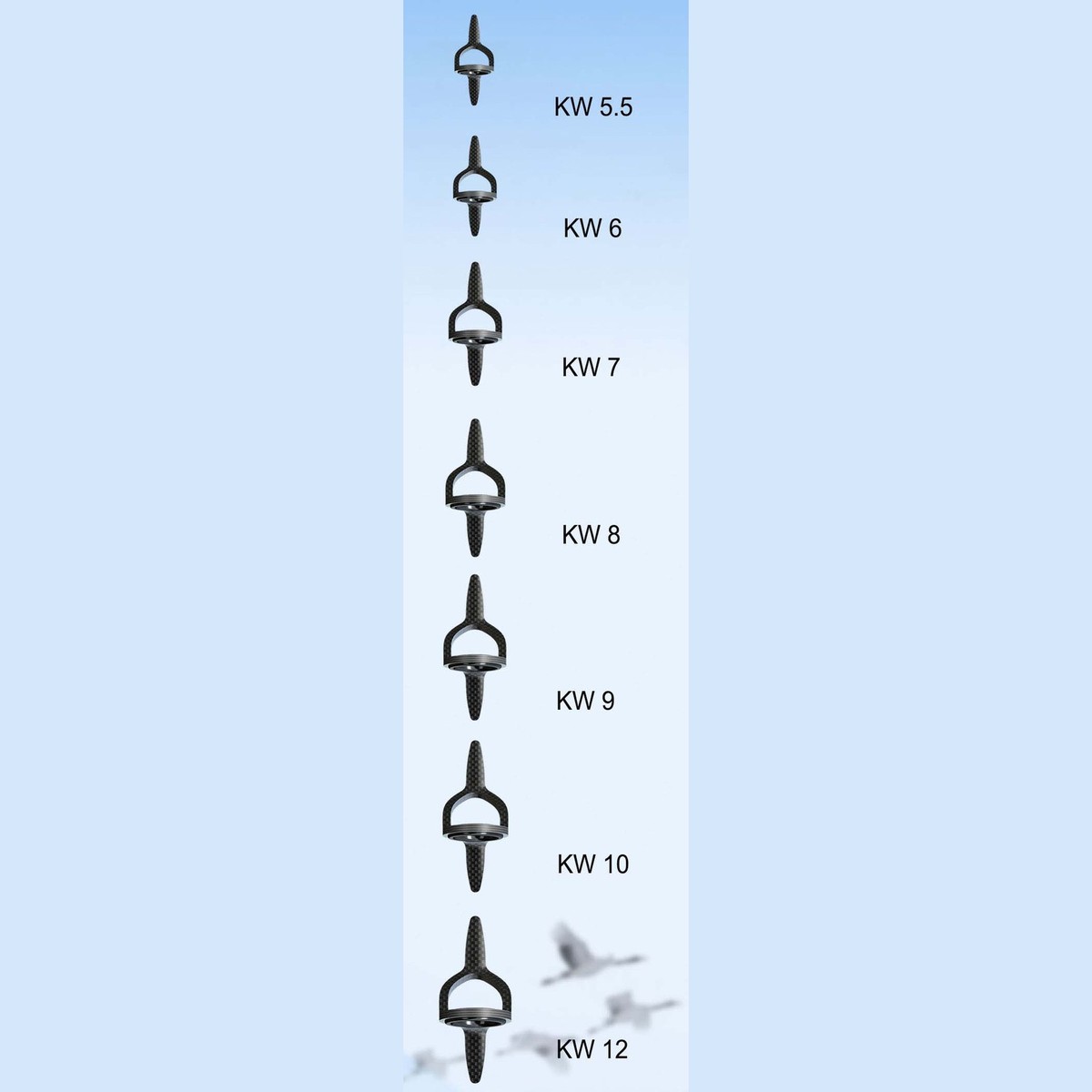

KW Carbon Guide sizes
| Model | H (mm) | L1 (mm) | L (mm) |
|---|---|---|---|
| KW 5.5 | 9.0 | 5.0 | 19.3 |
| KW 6 | 9.8 | 5.0 | 19.3 |
| KW 7 | 11.3 | 6.0 | 23.0 |
| KW 8 | 12.8 | 6.2 | 25.0 |
| KW 9 | 14.7 | 6.2 | 26.5 |
| KW 10 | 16.4 | 6.5 | 29.5 |
| KW 12 | 18.0 | 7.1 | 32.5 |
| KW 16 | 22.0 | 9.5 | 38.0 |
| KW 20 | 29.0 | 11.0 | 47.0 |
| KW 25 | 41.0 | 14.0 | 60.5 |
| KW 30 | 51.7 | 15.0 | 69.0 |
| KW 40 | 64.0 | 16.0 | 80.0 |
Specifications
| Series | KW carbon fiber frame, double foot |
| Ring | ZrO2 (standard) or Si3N4; colours black / gold / silver / pink |
| Sizes | 12 sizes, see table below |
| Supply | Loose guides, matched guide sets or specified in a complete-rod OEM program |
| Documentation | Catalogue size tables; guide-system drawing and approved sample before bulk production |
| MOQ | Per size, confirmed at quotation |
Dimensions are taken from our 2026 guide and reel seat catalogue (download PDF). Samples and the guide-system drawing are confirmed before bulk production.
