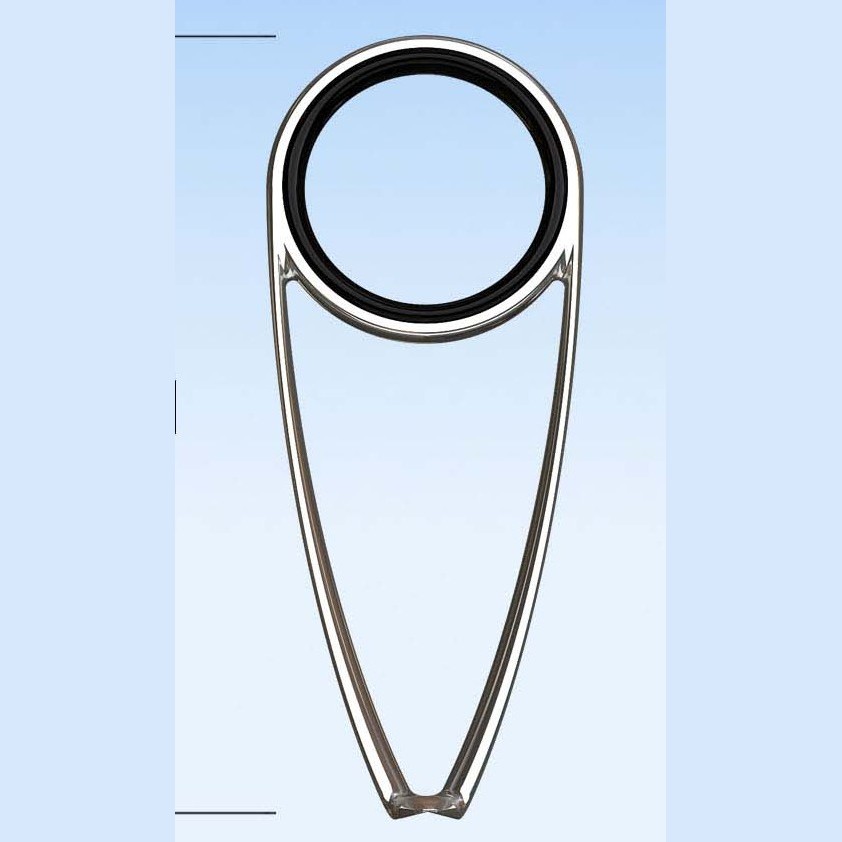

Titanium Top Guide overview
The tip-top is specified by ring size and tube inside diameter (I/D), which must match the blank tip. The catalogue covers ring size 4 with tubes from 0.8 to 2.0 mm, ring size 4.5 with tubes 1.4 to 2.2 mm, ring size 5 with tubes 1.6 to 2.4 mm and ring size 5.5 with tubes 1.8 to 2.6 mm.
Titanium Top guides are normally supplied as part of a T / TRA guide set so that tube and ring sizes match the drawing.
Features
- High-sensitivity titanium alloy frame guide
- Frame formed from titanium powder by high-pressure moulding
- High-strength silicon nitride (Si3N4) ring, hardness grade 9, wear-resistant surface
- Thin-ring structure with a wider contact surface for a more stable ring
- Special plated surface treatment, scratch and knock resistant
- Top guide available in 22 sizes

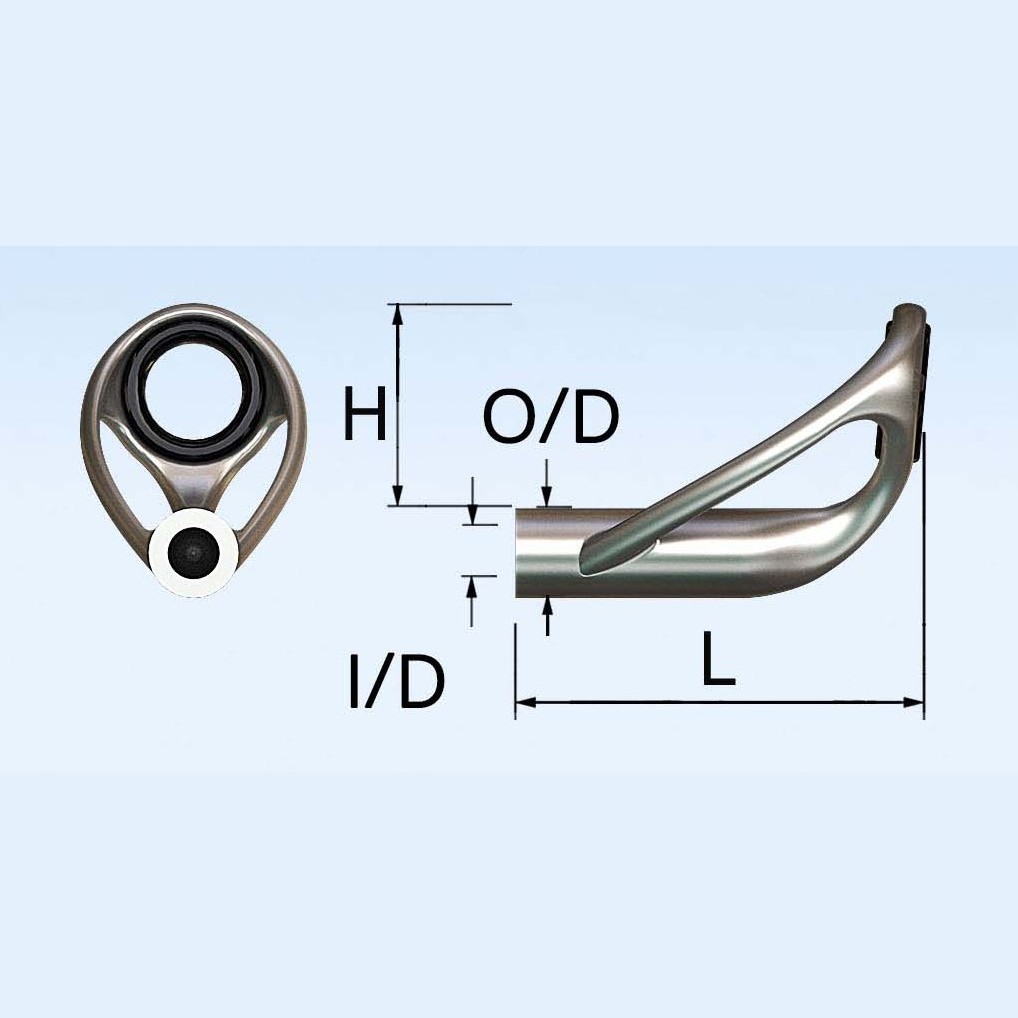

Titanium Top Guide sizes
| Model | H (mm) | L (mm) | I/D (mm) | O/D (mm) |
|---|---|---|---|---|
| Top4-0.8 | 5.0 | 11 | 0.8 | 1.5 |
| Top4-1.0 | 5.0 | 11 | 1.0 | 1.5 |
| Top4-1.2 | 5.0 | 11 | 1.2 | 1.8 |
| Top4-1.4 | 5.0 | 11 | 1.4 | 1.8 |
| Top4-1.6 | 5.5 | 11 | 1.6 | 2.4 |
| Top4-1.8 | 5.5 | 11 | 1.8 | 2.4 |
| Top4-2.0 | 5.5 | 11 | 2.0 | 2.4 |
| Top4.5-1.4 | 5.8 | 11 | 1.4 | 2.6 |
| Top4.5-1.6 | 5.8 | 11 | 1.6 | 2.6 |
| Top4.5-1.8 | 5.8 | 11 | 1.8 | 2.6 |
| Top4.5-2.0 | 5.8 | 11 | 2.0 | 2.6 |
| Top4.5-2.2 | 5.8 | 11 | 2.2 | 2.6 |
| Top5-1.6 | 6.6 | 13 | 1.6 | 2.8 |
| Top5-1.8 | 6.6 | 13 | 1.8 | 2.8 |
| Top5-2.0 | 6.6 | 13 | 2.0 | 2.8 |
| Top5-2.2 | 6.6 | 13 | 2.2 | 2.8 |
| Top5-2.4 | 6.6 | 13 | 2.4 | 2.8 |
| Top5.5-1.8 | 7.0 | 14 | 1.8 | 3.0 |
| Top5.5-2.0 | 7.0 | 14 | 2.0 | 3.0 |
| Top5.5-2.2 | 7.0 | 14 | 2.2 | 3.0 |
| Top5.5-2.4 | 7.0 | 14 | 2.4 | 3.0 |
| Top5.5-2.6 | 7.0 | 14 | 2.6 | 3.0 |
Specifications
| Series | Titanium frame tip-top |
| Ring | Si3N4 thin ring, hardness grade 9 |
| Sizes | 22 sizes, see table below |
| Supply | Loose guides, matched guide sets or specified in a complete-rod OEM program |
| Documentation | Catalogue size tables; guide-system drawing and approved sample before bulk production |
| MOQ | Per size, confirmed at quotation |
Dimensions are taken from our 2026 guide and reel seat catalogue (download PDF). Samples and the guide-system drawing are confirmed before bulk production.
