YT Carbon Guide overview

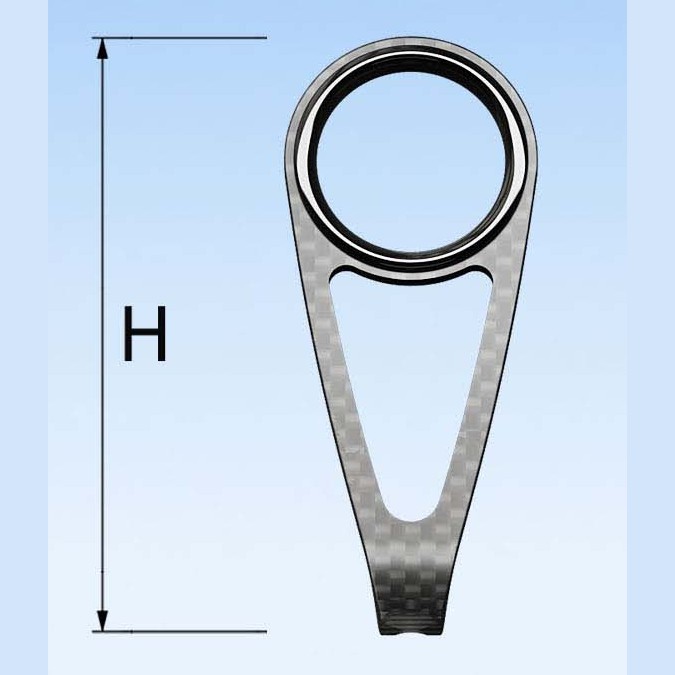

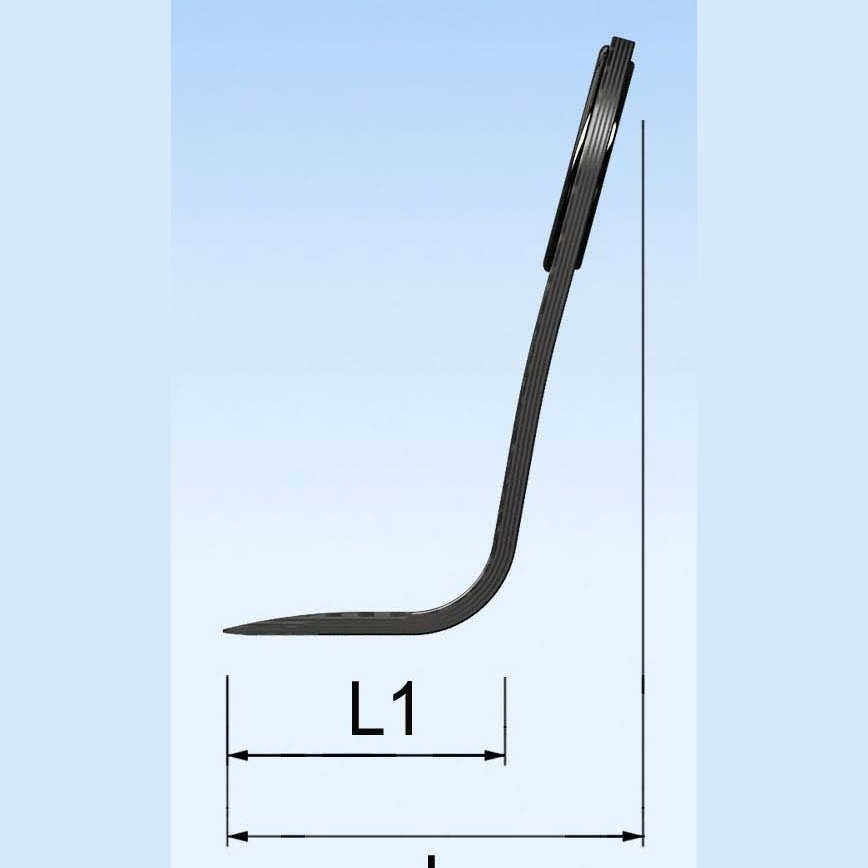

The YT series is the running-guide family of our carbon fiber guide system. The frame is produced from high-modulus carbon fiber and finished with a matte, scratch-resistant surface; the ceramic ring is a high-strength zirconia F-ring with a large bonding surface. H is the frame height, L1 the foot length and L the overall footprint on the blank.

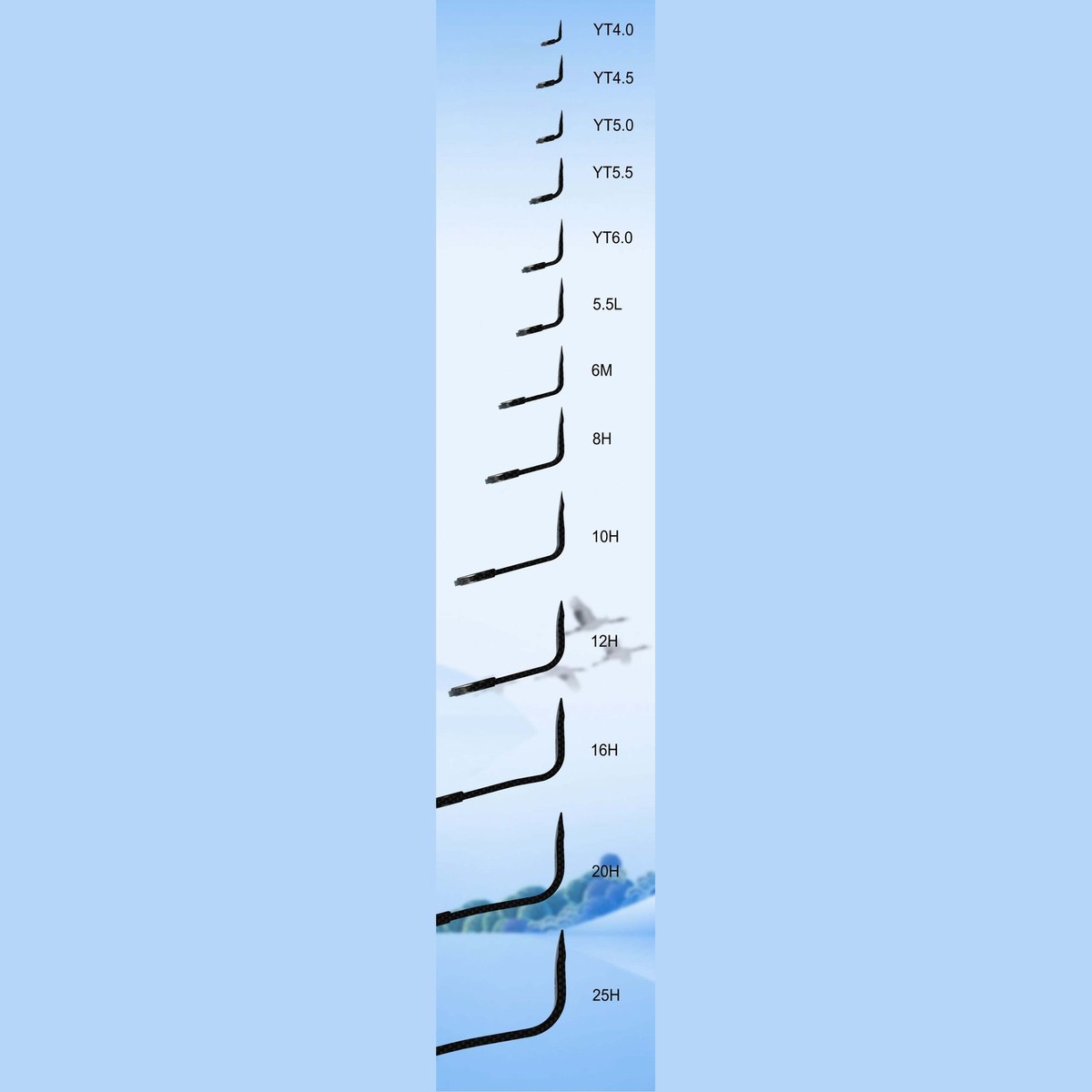

Sizes YT 4.0 to YT 10 are the small running guides; the L, M and H suffixes (5.5 L to 30 H) are taller frames used closer to the reel on spinning rods. Typical catalogue set examples: an 8+1 spinning train of 20H, 10H, 6M, 5.5L and four 4.5 running guides with a TOP 4.5-1.8 tip, or a 9+1 casting train that mixes KW 8/7/6 stripper guides with YT 5.5, YT 5 and four YT 4.5 running guides and a TOP 4.5-2.0 tip. Ring colours: bright black, bright gold, bright silver and pink. Ring materials: zirconia (ZrO2) and silicon nitride (Si3N4).
Features
- High-sensitivity carbon fiber frame guide
- Frame made from high-modulus carbon fiber for a large weight reduction
- High-strength zirconia (ZrO2) ring, hardness grade 8.5, wear-resistant surface
- F-ring structure with a larger bonding surface for a more stable ring
- Special matte surface treatment on the frame, scratch and knock resistant
- Single-foot guide available in 19 sizes
YT Carbon Guide sizes
| Model | H (mm) | L1 (mm) | L (mm) |
|---|---|---|---|
| YT 4.0 | 6.3 | 5.2 | 9.4 |
| YT 4.5 | 7.0 | 5.5 | 10.1 |
| YT 5.0 | 7.7 | 6.5 | 10.9 |
| YT 5.5 | 8.6 | 7.0 | 11.7 |
| YT 6.0 | 9.7 | 7.5 | 13.3 |
| YT 7.0 | 11.0 | 8.0 | 14.3 |
| YT 8.0 | 12.0 | 9.0 | 15.6 |
| YT 10 | 16.0 | 10.0 | 18.3 |
| 5.5 L | 11.1 | 8.0 | 13.6 |
| 6 L | 12.5 | 8.0 | 14.8 |
| 6 M | 18.5 | 8.5 | 17.5 |
| 8 M | 20.8 | 11.0 | 20.1 |
| 8 H | 26.3 | 12.0 | 22.1 |
| 10 H | 29.5 | 13.0 | 24.2 |
| 12 H | 31.5 | 14.0 | 26.2 |
| 16 H | 43.3 | 16.0 | 31.8 |
| 20 H | 50.1 | 16.5 | 34.6 |
| 25 H | 57.0 | 18.0 | 39.2 |
| 30 H | 60.5 | 18.5 | 42.0 |
Specifications
| Series | YT carbon fiber frame, single foot |
| Ring | ZrO2 (standard) or Si3N4; colours black / gold / silver / pink |
| Sizes | 19 sizes, see table below |
| Supply | Loose guides, matched guide sets or specified in a complete-rod OEM program |
| Documentation | Catalogue size tables; guide-system drawing and approved sample before bulk production |
| MOQ | Per size, confirmed at quotation |
Dimensions are taken from our 2026 guide and reel seat catalogue (download PDF). Samples and the guide-system drawing are confirmed before bulk production.
